FEKA VS 1200 M-NA 1

Key Features:

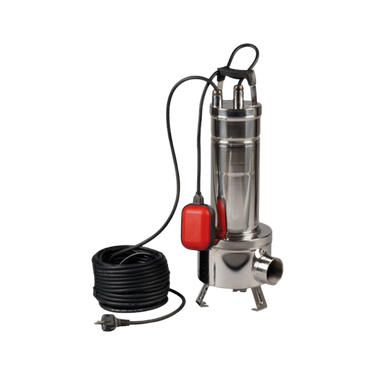

DAB FEKA VS 1200 M-NA Submersible Wastewater Pump 240v - 103042370

APPLICATIONS:

Stainless steel submersible centrifugal pump with microcast steel liquid vortex impeller, suitable for lifting sewage and drain water in general, containing solid matter with a size up to 50 mm.

CONSTRUCTION FEATURES OF THE PUMP:

AISI 304 stainless steel pump body, seal cover, motor cover, and cap with handle. Microcast steel impeller. Insulating rubber-covered handle. AISI 316 stainless steel motor shaft. Double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/ silicon carbide on the pump side.

CONSTRUCTION FEATURES OF THE MOTOR:

Dry, asynchronous, and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, selected to ensure low noise and durability. Overcurrent protection is standard for the single-phase version, optional for the three-phase version.

Permanently connected capacitor in the single-phase version. Continuous duty with liquid temperature 35°C and a completely submerged pump. The single-phase version can be supplied with a float for automatic operation.

• Power cable: 10 metres H07RN-F, with plug for the single-phase version.
• Number of poles: 2 Max starts/hour: 20

Details:

• Model No: 1200 M-NA
• Electrical Specification: 1.2 KW,1X220-240 V
• Made In: Italy
